Description

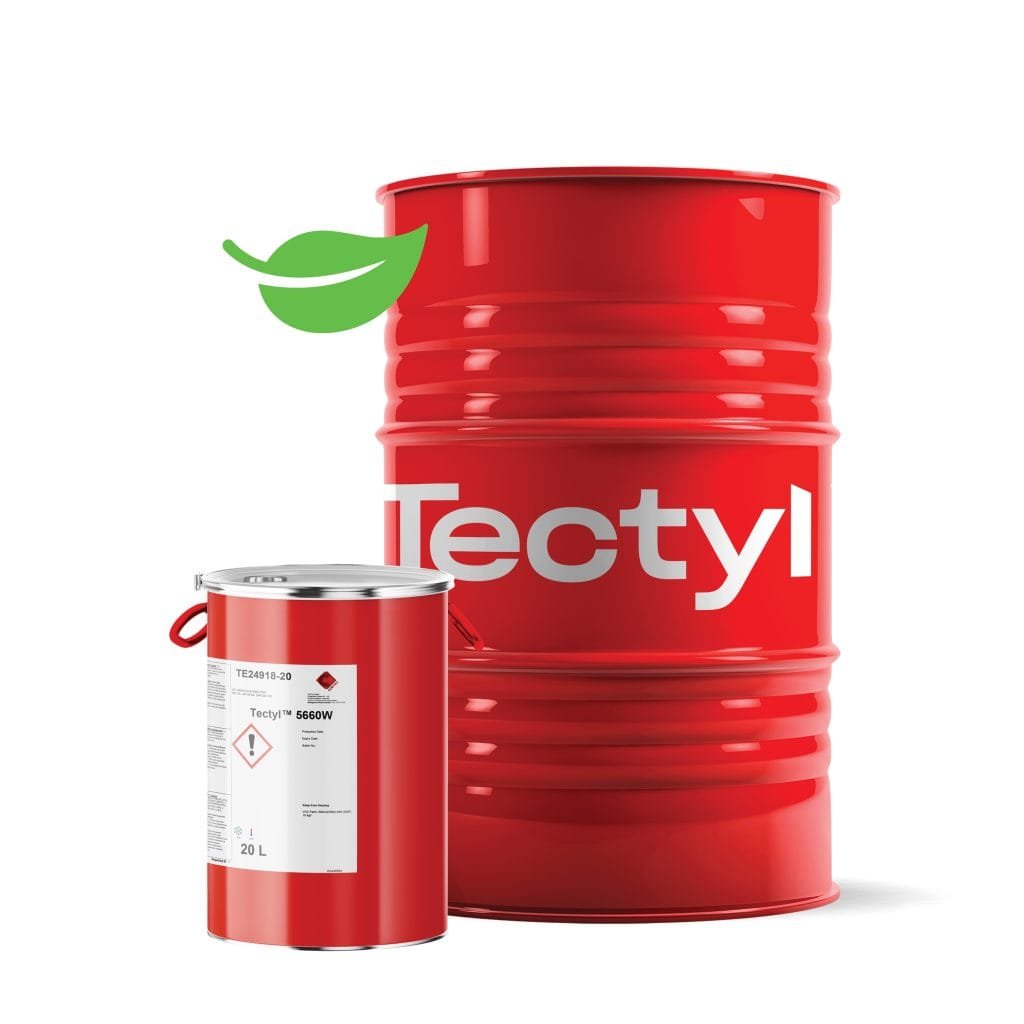

Tectyl® 5660W – Waterborne Abrasion-Resistant Underbody Coating
White House General Trading LLC | Authorized Tectyl Distributor in the UAE
Tectyl® 5660W is a high-solids, filled, waterborne, thixotropic, quick-drying, non-flammable dispersion coating with extremely low VOC. It is developed as an abrasion-resistant underbody coating for buses, vans and truck cabins, is suitable for complete undercoating of containers and trailers, and is an excellent sealant for wooden floors. It cures to a dark grey-black, abrasion-resistant, resilient, tough film.
Key Benefits
- Extremely low VOC: 2 g/L and non-flammable.
- Stone-chip resistant: 20 kg in VDA 508 at 500 µm.
- Quick drying: Dry to touch in 1 hour at 20°C.
- Seals wood: Also seals wooden floors of buses and trucks.
Typical Applications
- Bus, van and truck-cabin underbodies
- Container and trailer undercoating
- Wooden floors of buses and trucks
Performance Data
| Property | Tectyl® 5660W |
|---|---|
| Recommended dry film thickness | 500 µm |
| Stone chipping resistance (VDA 508) | 20 kg |
Typical Properties
| Property | Value |
|---|---|
| Film appearance | Dark grey-black, abrasion-resistant, resilient, tough |
| Density @ 20°C | 1.3 kg/L |
| Non-volatile content (by weight) | 70% |
| Theoretical coverage @ 500 µm DFT | 1.2 m²/L |
| Viscosity (Brookfield @ 20°C, 20 rpm) | 18,000 mPa·s |
| pH @ 20°C | 8.5 |
| Dry to touch @ 20°C | 1 hour |
| Cure time @ 20°C | 24 hours |
| Application temperature | 10-35°C |
| Storage temperature | 10-35°C |
| VOC content (ISO 11890-2) | 2 g/L |
| Shelf life | 12 months from production |
Typical properties may vary between production batches. Laboratory test results apply to the stated method and film thickness. Listed protection periods are manufacturer reference values, not a site-specific service-life guarantee. Actual protection depends on preparation, film thickness, exposure, handling and inspection. Theoretical coverage excludes application losses.
Surface Preparation
For best results, the metal surface should be clean, dry and free from rust, oil and mill scale. The substrate temperature should be between 10°C and 35°C when you apply the product. Non-galvanised steel and raw aluminium must be protected with an anti-corrosion primer before application.
Application
Use as supplied; ensure uniform consistency and do not thin. Avoid contamination in pumps and lines. The manufacturer’s application guide specifies airless spraying; use its current equipment instructions and confirm suitability for the job. Apply at the TDS temperature range of 10-35°C.
Removal
While still wet: Remove with water, Tectyl® Biocleaner or low-pressure steam.
After drying and curing: Not intended for removal; cured film cannot be removed.
Storage & Shelf Life
Store between 10°C and 35°C.
Do not allow the product to freeze.
Best used within 12 months of the production date.
Coating Compatibility
The manufacturer does not recommend applying other coatings over or under Tectyl® 5660W, because this may cause chemical incompatibility and reduce performance. If you need a primer, please consult our technical team first. Where the TDS requires written authorization from CorPro for a primer, obtain that authorization before use; distributor advice does not replace it.
Health, Safety & Handling
Read the current Safety Data Sheet (SDS) and product label for the exact supplied grade and market before use. Follow their requirements for ventilation, personal protective equipment, ignition control, storage, first aid and disposal. Do not discharge residues into drains, soil or water. Request the matching SDS from White House General Trading.
Frequently Asked Questions
What is Tectyl® 5660W used for?
Tectyl® 5660W is a high-solids, filled, waterborne, thixotropic, quick-drying, non-flammable dispersion coating with extremely low VOC. It is developed as an abrasion-resistant underbody coating for buses, vans and truck cabins, is suitable for complete undercoating of containers and trailers, and is an excellent sealant for wooden floors. It cures to a dark grey-black, abrasion-resistant, resilient, tough film.
How is Tectyl® 5660W applied?
Use as supplied; ensure uniform consistency and do not thin. Avoid contamination in pumps and lines. The manufacturer’s application guide specifies airless spraying; use its current equipment instructions and confirm suitability for the job. Apply at the TDS temperature range of 10-35°C.
Can Tectyl® 5660W be removed?
While still wet: Remove with water, Tectyl® Biocleaner or low-pressure steam. After drying and curing: Not intended for removal; cured film cannot be removed.
How should Tectyl® 5660W be stored?
Store between 10°C and 35°C. Do not allow the product to freeze. Best used within 12 months of the production date.
Where can I request Tectyl® 5660W in the UAE?
Contact White House General Trading LLC, an authorized Tectyl distributor based in the UAE, for product selection, technical documents, availability and a quotation. Include the quantity, application and delivery destination.
Technical Documents
Manufacturer application guide · Manufacturer technical data sheet
Technical values above refer to the Europe-manufactured product documentation reviewed on 7 October 2026. Confirm that the current documents match the supplied product and market.
