Description

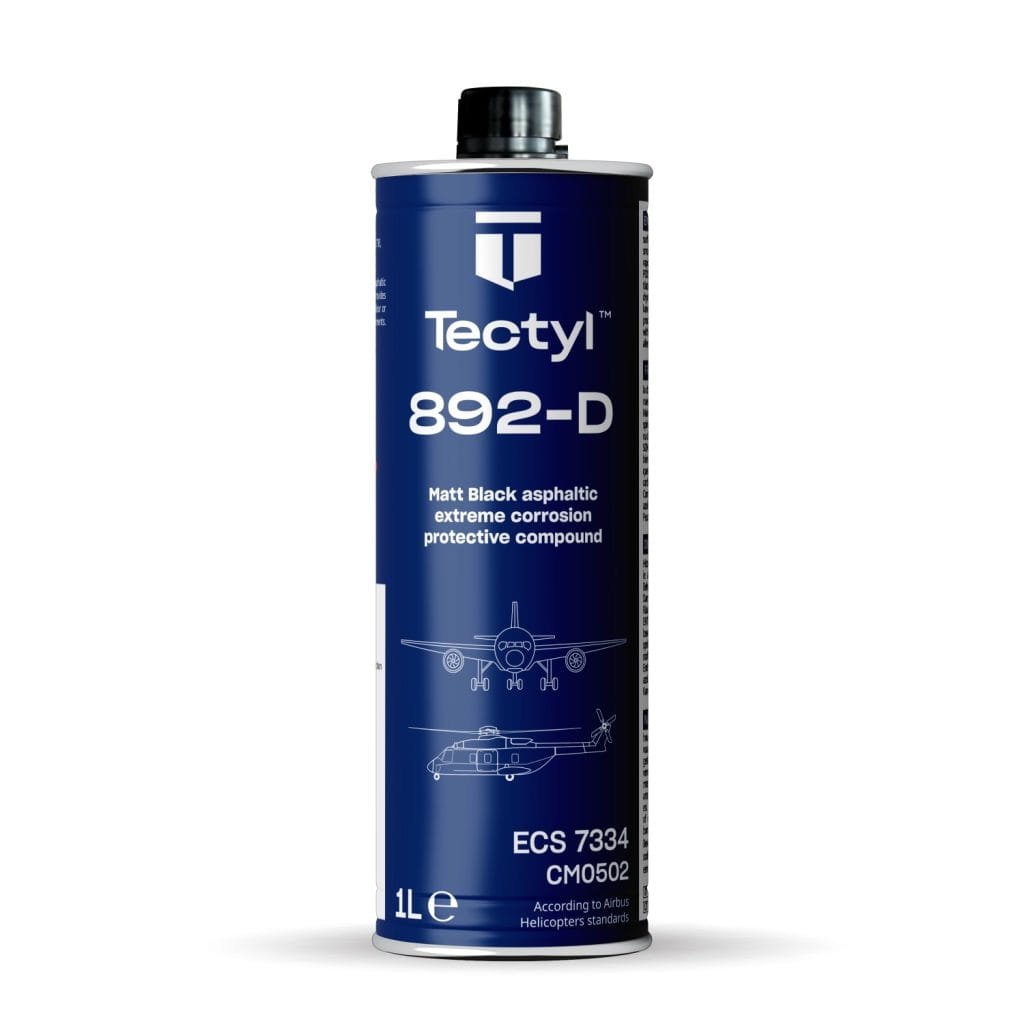

Tectyl® 892-D – MIL-PRF-16173E Grade 1 Hard-Film Preservative
White House General Trading LLC | Authorized Tectyl Distributor in the UAE
Tectyl® 892-D is a solvent-based corrosion preventive that forms a firm black film for indoor and outdoor preservation of metallic surfaces and shipment. Its manufacturer lists MIL-PRF-16173E Grade 1, Class I for zinc, aluminium and steel, and pass results for Airbus Helicopters ECS7334 and CM0502. Confirm current contract-specific evidence before specifying it for an aerospace or defence application.
Manufacturer-Listed Specifications and Test Results
MIL-PRF-16173E Grade 1, Class I (zinc, aluminium, steel)
Airbus Helicopters standard ECS7334: pass
Airbus Helicopters standard CM0502: pass
ASTM G85 Annex 2 on AA7075-T6 (scribed): 42 days
Confirm the current supporting documents, exact grade and applicable requirements for your project. Listed test results do not establish approval for every installation or platform.
Key Benefits
- Military and aerospace tested: MIL-PRF-16173E Grade 1 plus two Airbus Helicopters standards.
- Outdoor and UV protection: Excellent corrosion and UV protection for parts stored outside.
- Proven performance: 42 days salt spray, 100 days humidity and 500 hours ISO 4892-3 weathering.
- Economical: 60 µm film covers about 8.6 m² per litre.
Typical Applications
- Metallic parts and equipment in indoor or outdoor storage
- Zinc, aluminium and steel surfaces assessed against the product specification
- Domestic and international shipment; aerospace and defence use subject to the applicable procurement requirements
Performance Data
| Property | Tectyl® 892-D |
|---|---|
| Carrier | Solvent |
| Recommended dry film thickness | 60 µm |
| Salt spray (5% NaCl @ 35°C, ISO 9227 NSS) | Min. 42 days |
| Humidity (100% RH @ 40°C, ISO 6270-2 CH) | Min. 100 days |
| ASTM G85 Annex 2 (AA7075-T6, scribed) | 42 days |
| Weathering resistance (ISO 4892-3) | 500 hours, pass |
| Airbus Helicopters ECS7334 | Pass |
| Airbus Helicopters CM0502 | Pass |
| MIL-PRF-16173E | Grade 1, Class I |
Typical Properties
| Property | Value |
|---|---|
| Film appearance | Black, firm |
| Flash point (PMCC) | 40°C |
| Density @ 20°C | 0.9 kg/L |
| Non-volatile content (by weight) | 59% |
| Theoretical coverage @ 60 µm DFT | 8.6 m²/L |
| Dry to touch @ 20°C | 3 hours |
| Cure time @ 20°C | 24 hours |
| Application temperature | 10-35°C |
| Storage temperature | 10-35°C |
| VOC content (ISO 11890-2) | 368 g/L |
| Shelf life | 24 months from production |
Typical properties may vary between production batches. Laboratory test results apply to the stated method and film thickness. Listed protection periods are manufacturer reference values, not a site-specific service-life guarantee. Actual protection depends on preparation, film thickness, exposure, handling and inspection. Theoretical coverage excludes application losses.
Surface Preparation
For best results, the metal surface should be clean, dry and free from rust, oil and mill scale. The substrate temperature should be between 10°C and 35°C when you apply the product.
Application
Supplied ready to use. Do not thin.
Ensure uniform consistency and avoid contamination with other products in pumps and lines.
Apply by low-pressure air spray, brush or dipping at 10-35°C.
Removal
While still wet: Remove with Tectyl® Biocleaner, Tectyl® 150 or low-pressure steam.
After drying and curing: Remove with Tectyl® Biocleaner or Tectyl® 150.
Storage & Shelf Life
Store between 10°C and 35°C.
Do not allow the product to freeze.
Agitate gently before use; viscosity can change during storage.
When stored correctly, the product is best used within 24 months of the production date.
Coating Compatibility
The manufacturer does not recommend applying other coatings over or under Tectyl® 892-D, because this may cause chemical incompatibility and reduce performance. If you need a primer, please consult our technical team first. Where the TDS requires written authorization from CorPro for a primer, obtain that authorization before use; distributor advice does not replace it.
Health, Safety & Handling
Read the current Safety Data Sheet (SDS) and product label for the exact supplied grade and market before use. Follow their requirements for ventilation, personal protective equipment, ignition control, storage, first aid and disposal. Do not discharge residues into drains, soil or water. Request the matching SDS from White House General Trading.
Frequently Asked Questions
What is Tectyl® 892-D used for?
Tectyl® 892-D is a solvent-based corrosion preventive that forms a firm black film for indoor and outdoor preservation of metallic surfaces and shipment. Its manufacturer lists MIL-PRF-16173E Grade 1, Class I for zinc, aluminium and steel, and pass results for Airbus Helicopters ECS7334 and CM0502. Confirm current contract-specific evidence before specifying it for an aerospace or defence application.
How is Tectyl® 892-D applied?
Supplied ready to use. Do not thin. Ensure uniform consistency and avoid contamination with other products in pumps and lines. Apply by low-pressure air spray, brush or dipping at 10-35°C.
Can Tectyl® 892-D be removed?
While still wet: Remove with Tectyl® Biocleaner, Tectyl® 150 or low-pressure steam. After drying and curing: Remove with Tectyl® Biocleaner or Tectyl® 150.
How should Tectyl® 892-D be stored?
Store between 10°C and 35°C. Do not allow the product to freeze. Agitate gently before use; viscosity can change during storage. When stored correctly, the product is best used within 24 months of the production date.
Where can I request Tectyl® 892-D in the UAE?
Contact White House General Trading LLC, an authorized Tectyl distributor based in the UAE, for product selection, technical documents, availability and a quotation. Include the quantity, application and delivery destination.
Technical Documents
Manufacturer technical data sheet
Technical values above refer to the Europe-manufactured product documentation reviewed on 7 October 2026. Confirm that the current documents match the supplied product and market.
